PROJECT OVERVIEW
The Customer Support Chatbot - Escalation & Response Automation is an AI-powered workflow built using n8n that automates website chat interactions, intelligently analyzes customer queries, and escalates critical cases to human agents when required.
The system combines AI-driven responses, SOP-based knowledge retrieval, structured logging, and real-time team alerts ensuring fast, consistent, and scalable customer support operations.
Objectives
- Automate first-level customer support responses
- Reduce manual monitoring of website chats
- Detect high-priority or sensitive cases automatically
- Escalate urgent queries to human agents instantly
- Maintain structured logs for audit and performance tracking
- Improve overall response speed and customer satisfaction
The Challenge
Customer support teams often face:
Without automation, teams struggle to balance speed, accuracy, and escalation management.

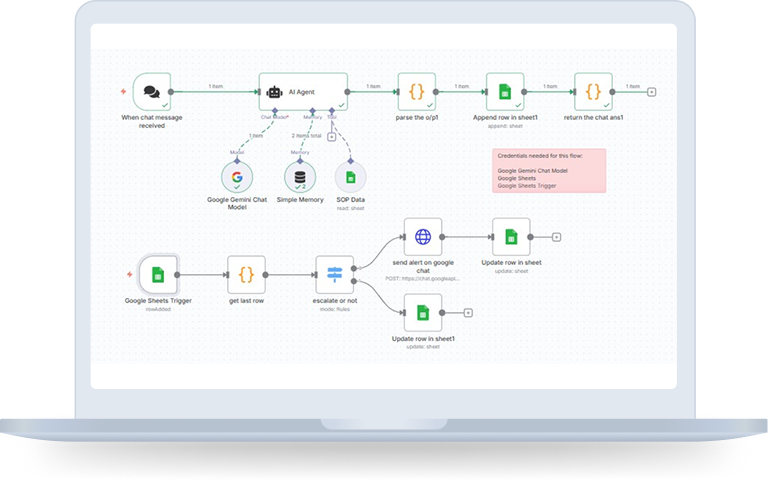

THE SOLUTION ARCHITECTURE (HOW DOES IT WORK?)
A two-layer AI-Powered chatbot system integrating n8n, google sheets, google gemini AI model and Google chat. The system ensures customer messages are analyzed intelligently, responded to instantly, logged systematically and escalated automatically when needed.
How Does It Work?

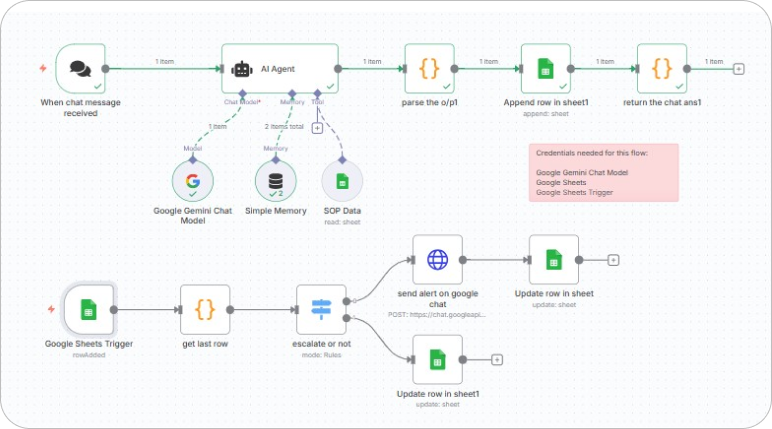

Workflow 1: Chat Message Processing
1. Chat Trigger
- When a customer submits a message through the website chat interface, the n8n workflow is triggered instantly.
2. AI Agent Analysis
- The message is sent to an AI Agent powered by Google Gemini Chat Model, which processes the query using:

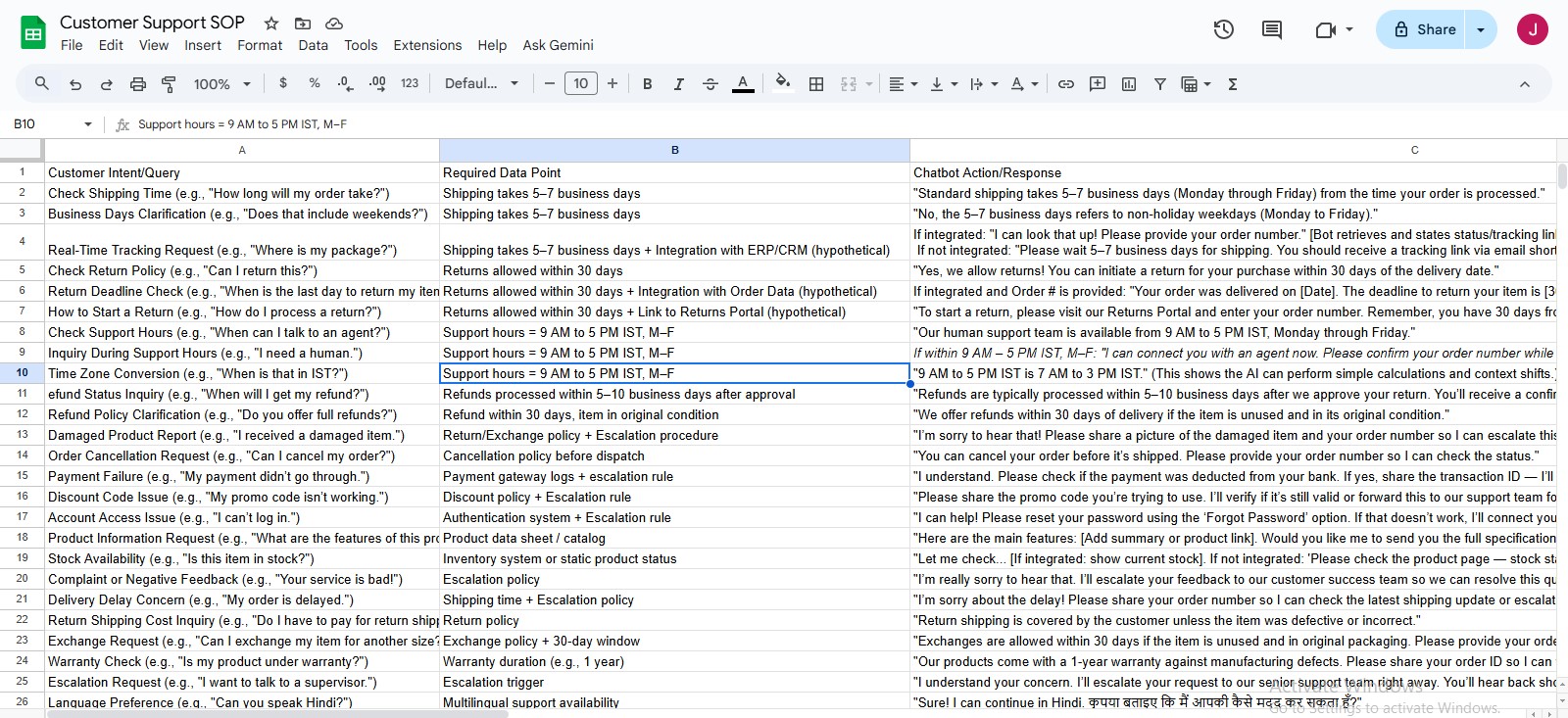

- SOP Data (Knowledge Base) stored in Google Sheets
- Simple Memory for short-term multi-turn context retention
The AI:
- Detects customer intent
- Extracts key information
- Determines escalation need
- Returns structured JSON output including:
Customer Query
AI Response
Escalation Status (True/False)
3. Clean Parsing of AI Output
A Code Node:
- Removes markdown fences
- Extracts only required keys
- Ensures clean JSON formatting
This guarantees structured and reliable data handling.

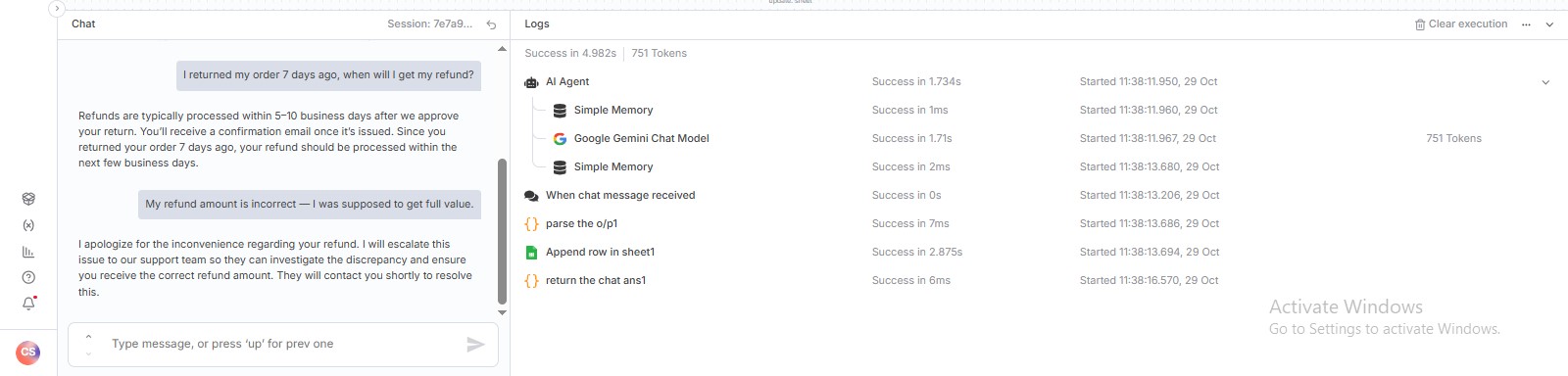

4. Structured Chat Logging
Each interaction is logged into Google Sheets, capturing:
- Customer Query
- AI Response
- Escalation Status
- Timestamp
The chatbot simultaneously sends the AI-generated reply back to the customer in real time.
Workflow 2: Escalation & Alert Management
1. Escalation Trigger
Whenever a new chat log entry is added to Google Sheets, the second workflow activates automatically.
2. Escalation Check
A Code Node retrieves the latest row and evaluates the “Escalation” field.
3. Conditional Routing
Using an If Node:
✅ If Escalation = False
Query marked as Handled Automatically
No human intervention required
🚨 If Escalation = True

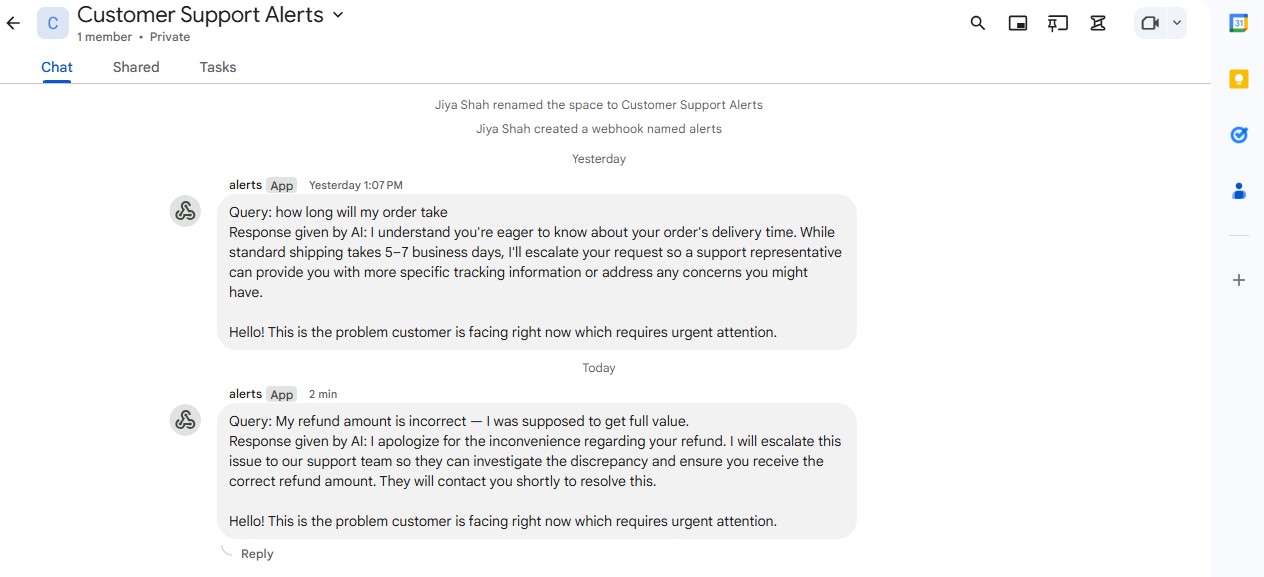

A Google Chat message is sent to the internal support channel containing:
Customer Query
AI Response
Timestamp
Sheet updated as Alert Raised
Human support team notified instantly
This ensures no urgent case goes unnoticed.
Technology Stack Included
Key Benefits
AI-driven instant responses
Smart escalation detection (refunds, complaints, urgent issues)
Real-time team alerts
Structured and searchable chat logs
SOP-based consistent answers
Scalable for growing support teams
The Solution Is Ideal For
Download The Case Study
You’re one step away from building great software. This case study will help you learn more about how BMV System Integration helps successful companies extend their tech teams.
Enter Your Detail
Closure
The n8n Customer Support Chatbot transforms traditional reactive customer service into a proactive, intelligent, and scalable support system.
By combining AI-powered query handling with automated escalation alerts, businesses can drastically improve response speed, reduce manual workload, and ensure critical customer issues are never missed.
This solution delivers faster support, improved customer satisfaction, and operational efficiency all within a structured and transparent automation framework.
