PROJECT OVERVIEW
The CRM Agent Automation is an AI-driven lead management system built using n8n.
It automates the complete lifecycle of CRM lead handling from lead intake and duplicate detection to AI-based qualification, enrichment, prioritization, and automated follow-up scheduling.
By intelligently analyzing intent, job roles, and relevance, the system ensures high-quality leads are contacted instantly while low-value or duplicate entries are filtered automatically.
Objectives
- Automate lead intake and classification
- Eliminate duplicate CRM records
- Prioritize leads based on buying intent
- Schedule instant follow-ups for high-value prospects
- Improve sales response time
- Maintain structured and enriched CRM records
- Reduce manual lead screening effort
The Challenge
Sales teams often struggle with:
This results in missed opportunities, slow engagement, and inefficient use of sales resources.

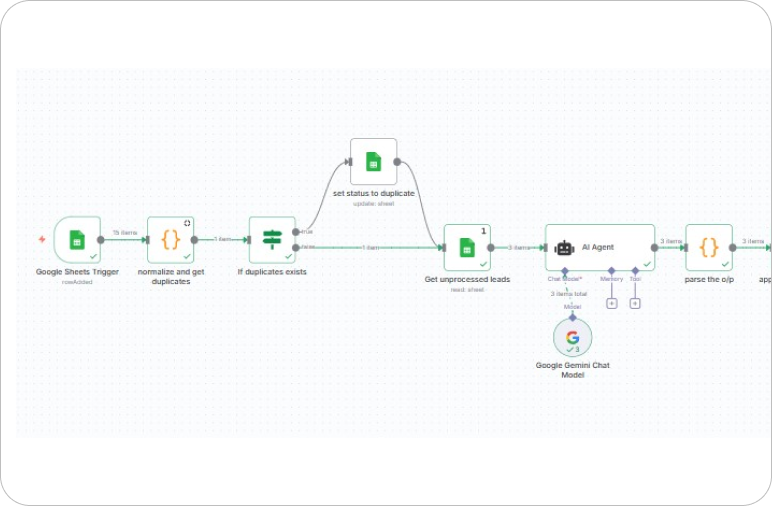

THE SOLUTION ARCHITECTURE (HOW DOES IT WORK?)
A Google Apps Script attached to the lead sheet automatically assigns a default “Unprocessed” status whenever a new lead is added ensuring no lead is skipped.
Step 1: Trigger - Lead Intake

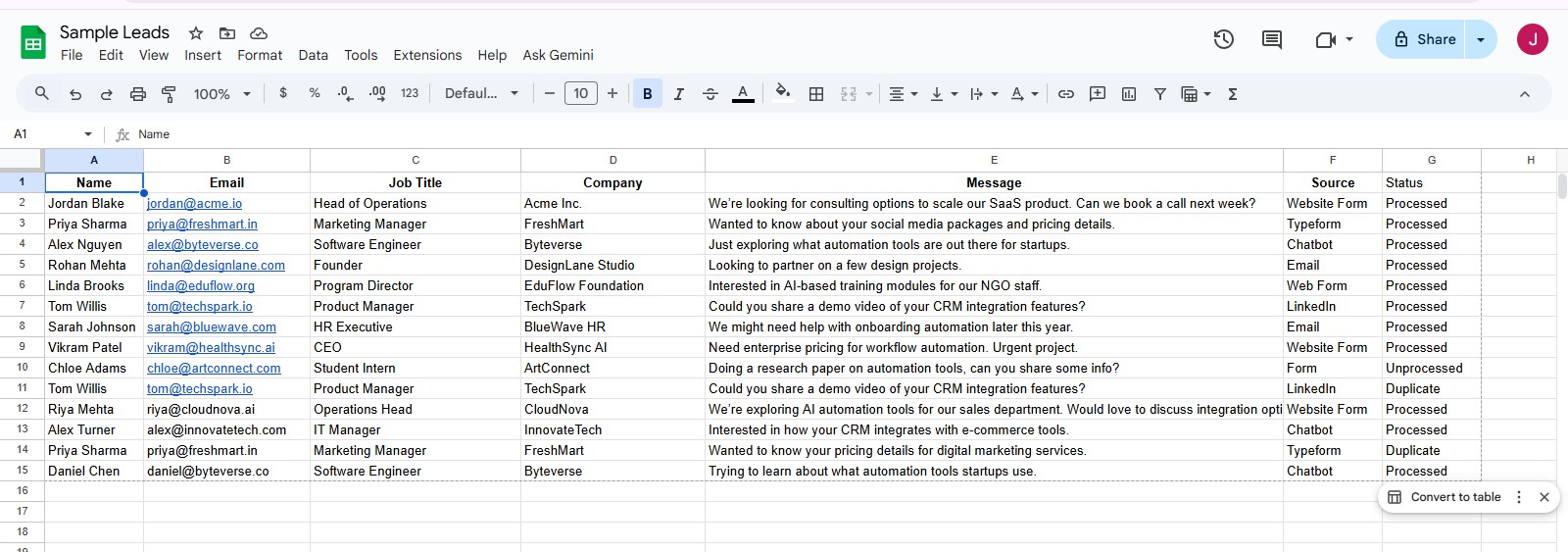

- Whenever a new lead is added to the primary Leads Sheet, the workflow activates.
- All lead records are fetched for validation and processing.
Step 2: Data Normalization & Duplicate Detection
- The chatbot simultaneously sends the AI-generated reply back to the customer in real time.
Step 3: If Duplicate Exist
- Makes identified duplicate rows with the status “Duplicate”
- Proceeds to fetch only unprocessed leads for enrichment
Step 4: If No Duplicates Exist
- Skips duplicate handling and directly moves to fetching unprocessed leads
Step 5: AI Agent (Google Gemini Chat Model)

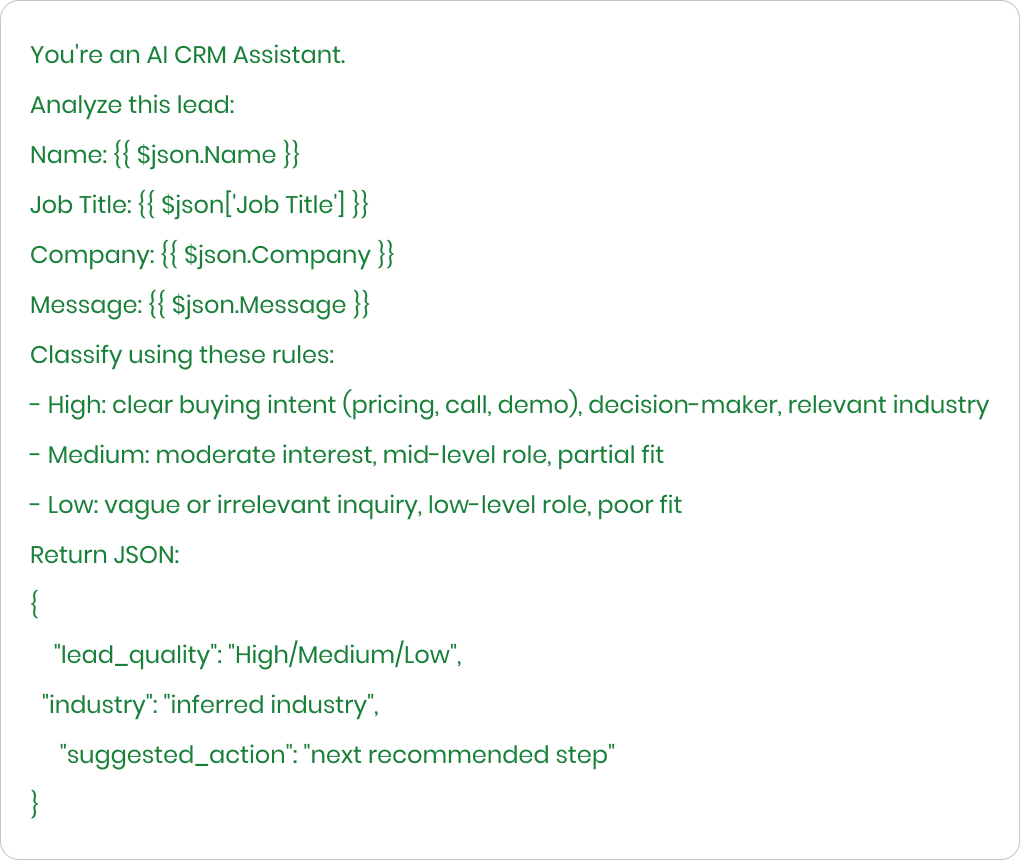

- Each unprocessed lead is analyzed by the AI assistant with the following prompt:
Step 6: Parse the Output (Code Node)
- Extracts structured JSON values for lead_quality, industry, and suggested_action.
Step 7: Append to Enriched Sheet
- Logs the enriched lead data into a separate “Enriched Leads” sheet with: Name, Email, Company, Job Title, Message, Source, AI-predicted Lead Quality, Industry and Suggested Action
Step 8: Loop Over Items
- Iterates through all enriched leads and routes them to appropriate actions based on priority.
Step 9: Switch (High/Medium/Low)
- Routes each lead to a different process flow depending on AI classification.
- Dynamically calculates the next available follow-up date.(static time for nearest TUE/THU)
- Automatically schedules a meeting or call with the lead in Google Calendar.
- Marks the lead as “Processed” in the “leads” sheet.
A> High-Priority Leads
Set Suitable Date (Code Node):

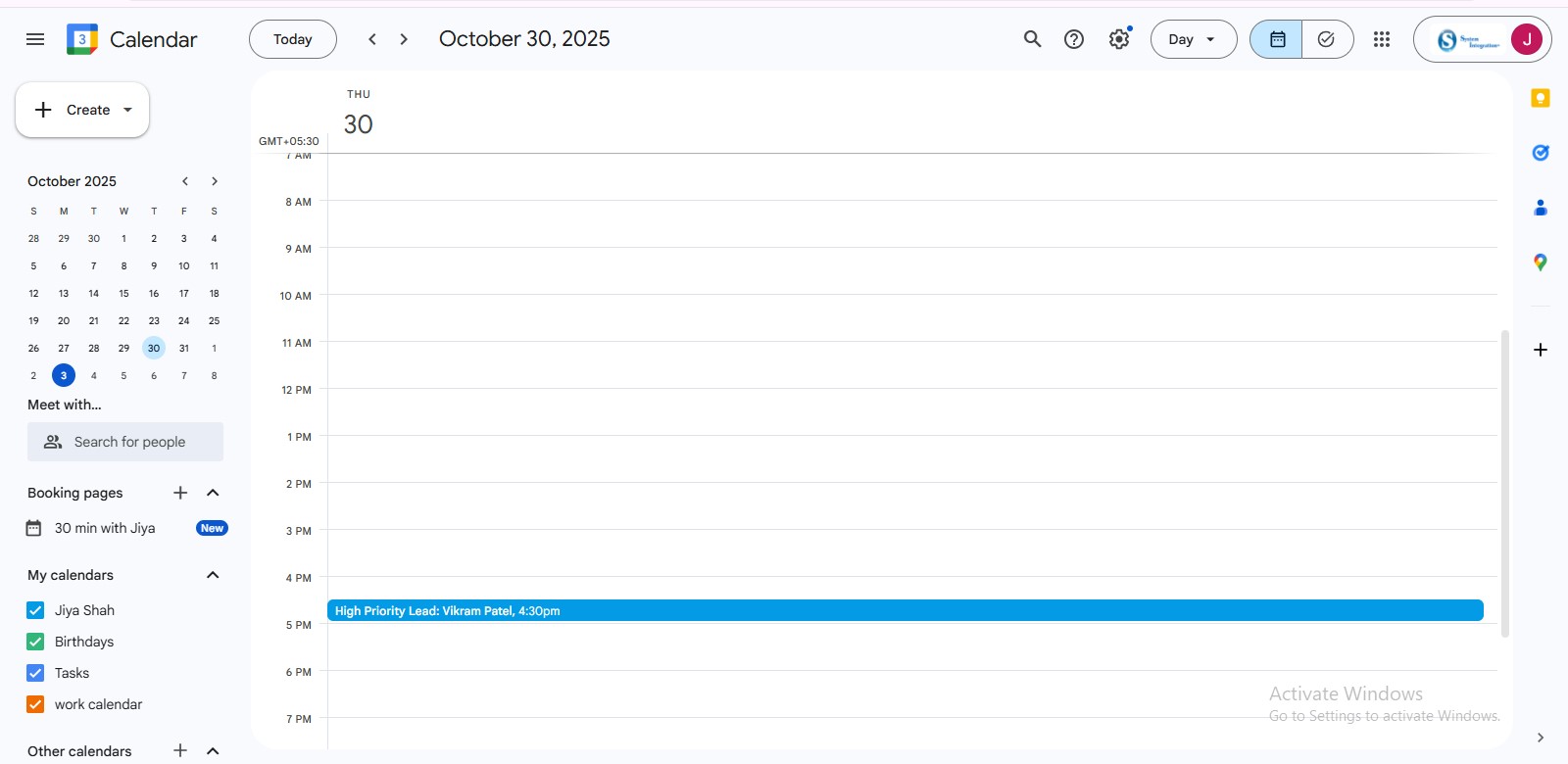

Create Event (Google Calendar):
Update Status:
B> Medium-Priority Leads
-

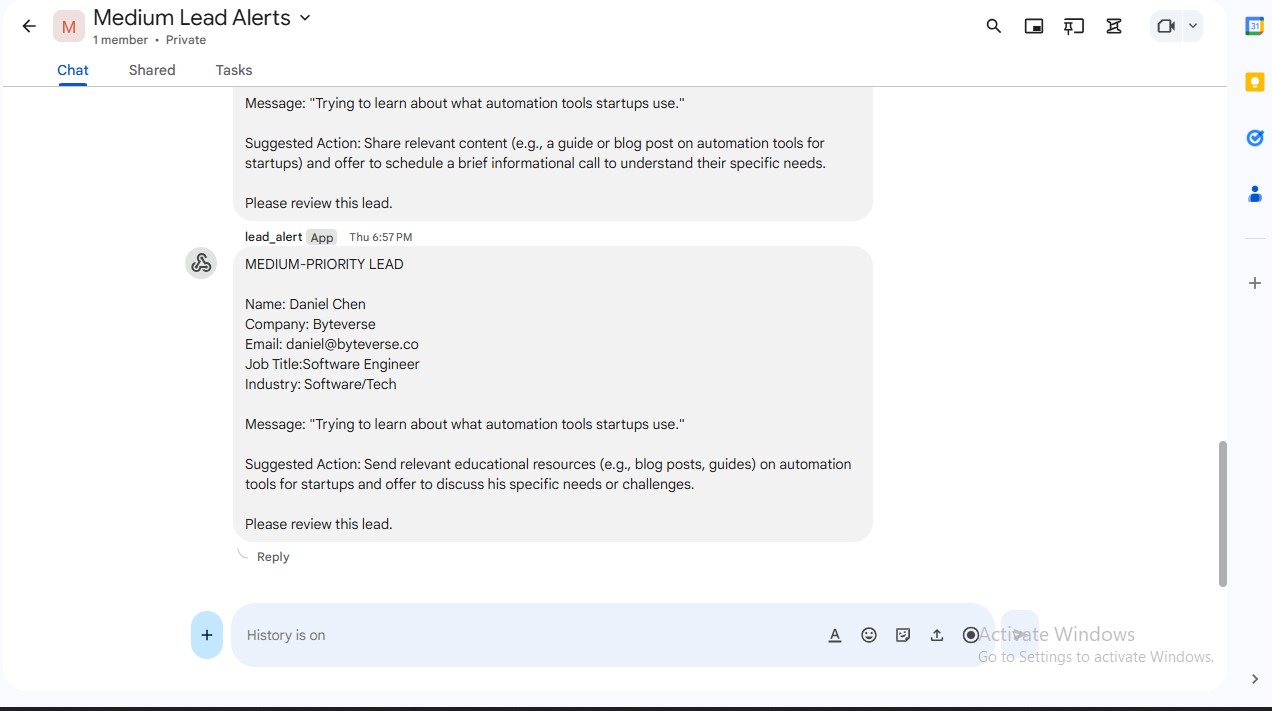

Send Alert on Google Chat:
- Sends a structured message to the sales team channel for manual review:

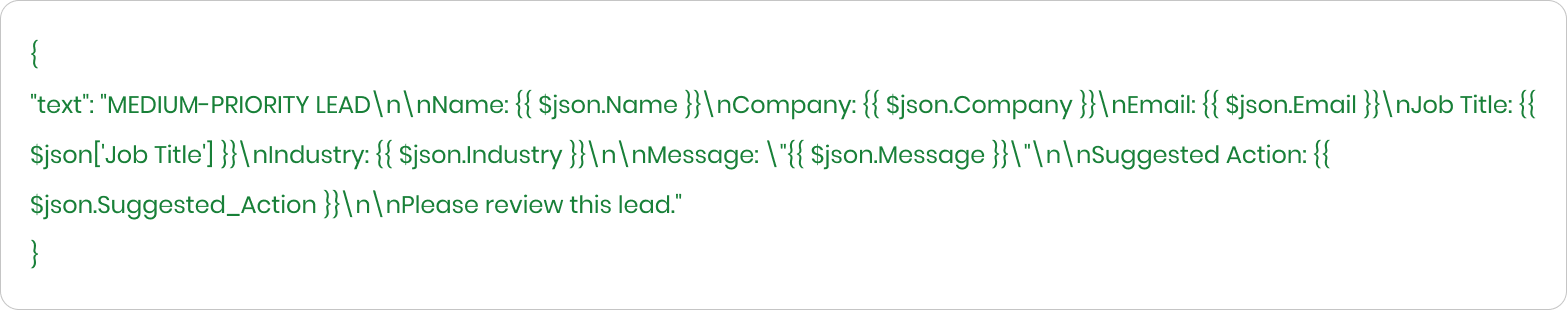

This is the msg json:
- Update Status:
- Low-Priority Leads
- Update Status:
Marks the lead as “Processed” in the “leads” sheet.
Append to “low Leads” Sheet:
Moves these entries to a separate Low-Quality Leads Log for reference.
Marks the lead as “Processed” in the “leads” sheet.
Technology Stack Included
Key Benefits
End-to-End CRM Automation
From lead intake → AI analysis → enrichment → routing → follow-up.
Smart AI Lead Scoring
Automatically classifies leads into High / Medium / Low based on message intent and job role.
No Duplicate Data
Automatically identifies and flags duplicate entries before processing.
Instant Follow-Up Scheduling
High-value leads are instantly added to Google Calendar with appropriate follow-up events.
Team Collaboration via Chat
Medium-priority leads are shared on Google Chat channels for human review.
Centralized Data Logs
All actions are reflected in Google Sheets for transparency and reporting.
The Solution Is Ideal For
Download The Case Study
You’re one step away from building great software. This case study will help you learn more about how BMV System Integration helps successful companies extend their tech teams.
Enter Your Detail
Closure
The n8n CRM Agent Automation transforms traditional manual CRM processes into a fast, intelligent, and scalable system.
By combining AI-powered lead scoring with automated routing and follow-up scheduling, businesses can respond faster, prioritize smarter, and convert better, all while maintaining a clean and structured CRM database.
This is not just automation, it’s intelligent sales enablement powered by AI and workflow orchestration.
